Product_Category
储能系统电池储能
制造商
类型
封装
RoHS
YES
价格
| Nominal Working Current: | 50 A | Life Cycle: | 6000 Cycles |
|---|---|---|---|
| Operation Temperature: | -20℃~60℃ | Installation Method: | Floor-standing |
| Protection Level: | IP55 | ||
| Highlight: |
50A ESS Battery Storage,50A Rack Mounted Lithium Battery,High Voltage ESS Battery Storage |
||

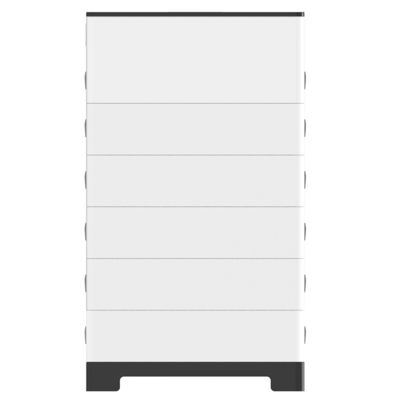

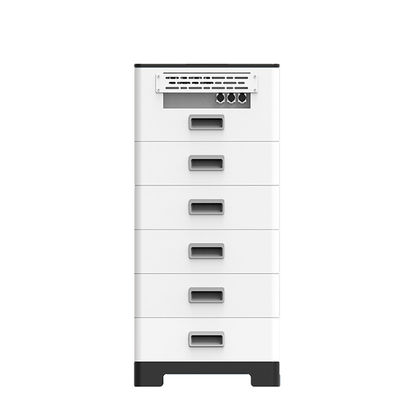

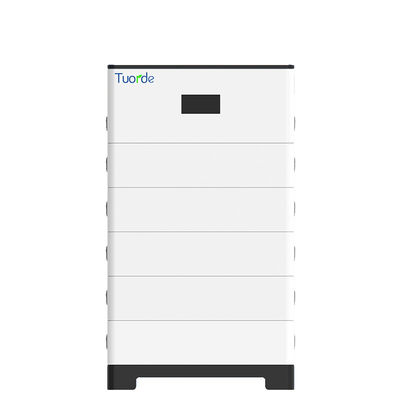

Tuorde Factory power High voltage energy storage system
| Basic Parameters | 3-module | 4-module | 5-module | 6-module |
Nominal Capacity(KWh) |
7.68 |
10.24 |
12.8 | 15.36 |
| Cell Matching | 48S1P |
64S1P | 80S1P | 96S1P |
Working Voltage Range(V) |
136.8-172.81 |
182.4-230.4 | 228-288 | 273.6-345.6 |
Weight(kg) |
115 |
145 |
175 |
205 |
| Nominal voltage(V) | 153.6 | 204.8 | 256.0 | 307.2 |
| Dimension (WxDxH)(mm) | 550x430x697.5 | 550x430x826.5 | 550x430x955.5 | 550x430x1084.5 |
| Battery Type | LFP(LiFePO4) | |||
| Nominal Working Current | 50 A | |||
Communication Port |
CAN/RS485 |
|||
Working Temperature Range |
Charge:0-45°C/Discharge:-10-50°℃ |
|||
| Waterproof | lp55 | |||
| Installation Method | Eloor-standing | |||
Cycle Life |
>6000,25°C/77°F,80%DOD |
|||
| Peak charge/discharge current(@25°C,5S) | 63A |
|||
| Discharge rate of Module | ≤3.5%/month/@25°℃ | |||
| Module Series connection/Module | 3S~6S |
|||
| Parallel connection | 4 units in paralle | |||
